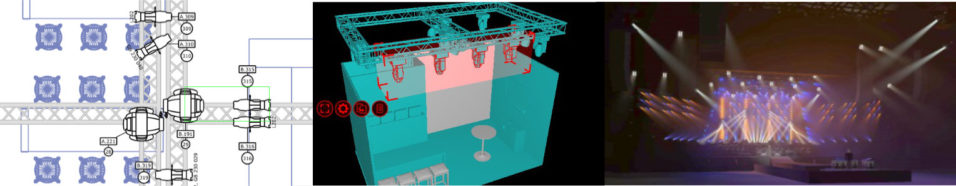

[Above: Three stages of design and visualisation using Capture software. 2D plan view, 3D isometric view, Visualize view]
Evolution
Scale models of theatre scenery have been used as a staple tool of the set designer for many years.
In 1990, Patrick Woodroffe built a quarter-scale studio to try out large concert lighting rigs.
🍪 Privacy & Transparency
We and our partners use cookies to Store and/or access information on a device. We and our partners use data for Personalised ads and content, ad and content measurement, audience insights and product development. An example of data being processed may be a unique identifier stored in a cookie. Some of our partners may process your data as a part of their legitimate business interest without asking for consent. To view the purposes they believe they have legitimate interest for, or to object to this data processing use the vendor list link below. The consent submitted will only be used for data processing originating from this website. If you would like to change your settings or withdraw consent at any time, the link to do so is in our privacy policy accessible from our home page..
We and our partners use cookies to Store and/or access information on a device. We and our partners use data for Personalised ads and content, ad and content measurement, audience insights and product development. An example of data being processed may be a unique identifier stored in a cookie. Some of our partners may process your data as a part of their legitimate business interest without asking for consent. To view the purposes they believe they have legitimate interest for, or to object to this data processing use the vendor list link below. The consent submitted will only be used for data processing originating from this website. If you would like to change your settings or withdraw consent at any time, the link to do so is in our privacy policy accessible from our home page..
We and our partners use cookies to Store and/or access information on a device. We and our partners use data for Personalised ads and content, ad and content measurement, audience insights and product development. An example of data being processed may be a unique identifier stored in a cookie. Some of our partners may process your data as a part of their legitimate business interest without asking for consent. To view the purposes they believe they have legitimate interest for, or to object to this data processing use the vendor list link below. The consent submitted will only be used for data processing originating from this website. If you would like to change your settings or withdraw consent at any time, the link to do so is in our privacy policy accessible from our home page..
We and our partners use cookies to Store and/or access information on a device. We and our partners use data for Personalised ads and content, ad and content measurement, audience insights and product development. An example of data being processed may be a unique identifier stored in a cookie. Some of our partners may process your data as a part of their legitimate business interest without asking for consent. To view the purposes they believe they have legitimate interest for, or to object to this data processing use the vendor list link below. The consent submitted will only be used for data processing originating from this website. If you would like to change your settings or withdraw consent at any time, the link to do so is in our privacy policy accessible from our home page..
Glossary of Technical Theatre Terms: Visualisation
🍪 Privacy & Transparency
We and our partners use cookies to Store and/or access information on a device. We and our partners use data for Personalised ads and content, ad and content measurement, audience insights and product development. An example of data being processed may be a unique identifier stored in a cookie. Some of our partners may process your data as a part of their legitimate business interest without asking for consent. To view the purposes they believe they have legitimate interest for, or to object to this data processing use the vendor list link below. The consent submitted will only be used for data processing originating from this website. If you would like to change your settings or withdraw consent at any time, the link to do so is in our privacy policy accessible from our home page..
3D STUDIO MAX Software for constructing detailed 3D models and producing animated 'walkthroughs' and 'fly-throughs', owned and developed by Autodesk. The program is now known as 3DS MAX and is becoming the industry standard for 3D design for visualisation and animation. Autodesk website
AUTOCAD Industry-standard CAD program for architects and designers. WYSIWYG contains a cut-down version of Autocad, along with visualisation tools.
CAD Computer-Aided Design. Using a computer to help with 2D plans and drawings, or increasingly for 3D visualisation of how a set will look, and how lighting will affect it. See also WYSIWYG.
GUI (Computing Term) Graphical User Interface. Describes the visual appearance on-screen of computer software or operating system.
LIGHTJOCKEY Club / DJ control and visualisation software by Martin. Martin website
MODELBOX 1) A wooden box representing the walls of a theatre space in which cardboard scale models can be placed by the set designer. See also MODEL.
2) UK-based CAD in Theatre specialist. Lighting symbols for CAD programs are available as a free download. Modelbox website
OPENSTAGES Powerful visualisation software for students and scenic designers. Doesn't have the engineering accuracy of Autocad or the lighting simulation of WYSIWYG but is much more geared towards theatre, and is much easier to learn. Openstages website
RADIOSITY TO BE DEFINED
RENDERING 1) (3D Design) The process of producing a real-world style image within a 3D design program. Depending on the computer power, a fully rendered image can look as good as a photograph of the real world equivalent. Rendered images are used by lighting, scenic and multimedia artists to present ideas to other members of the production team.
2) (Design) The art of creating an illustration on paper showing how a design concept will look when built.
SHOWDESIGNER Visualisation software produced by Martin. Martin website
THEATRON 1) Refers to the auditorium / seating area of an ancient Greek or Roman theatre.
2) Two scene preset compact manual control desk made by Century Lighting.
3) 3D model archive project for creating accurate (and amazing) VRML models of old theatre buildings. (Windows operating system only). Theatron VR website
VRML (3D Design) Virtual Reality Modelling Language. A language for describing 3D objects within a simple text file. With a VRML Viewer, complex models can be emailed between designers and other production staff for comment. The VRML Viewer allows the user to move around the 3D model using simple mouse moves. VRML is pronounced 'verrmul'.
WYSIWYG Acronym of 'What You See Is What You Get'. Mainly used in the context of a software tool for lighting design and production administration. Capable of stunning 3D rendering of lighting states, and direct connection to a lighting control desk. Enables accurate pre-visualisation of lighting designs and greatly increases the understanding between director / producer and lighting / scenic designer in the early stages of a production. WYSIWYG product details
