VL3000  (2002)
Vari*Lite


Spot & Wash - series 3000

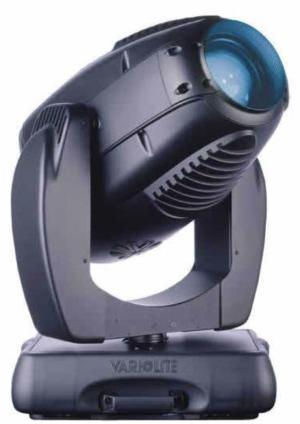

VL3000 Spot
Proudly built in the USA, the VARI*LITE VL3000 Spot luminaire sets new standards for imagery, beam control, color and brightness in spot luminaires. The VARI*LITE VL3000 Spot luminaire features a 6:1 zoom optics, CYM color mixing, variable CTO color temperature correction, a six-position color wheel, three gobo/effects wheels, a beam size iris and separate dimmer and ultra-fast strobe mechanisms. A standard pallet of gobos, effects and colors is provided with the unit. Custom gobos, effects and color are available. An upper enclosure houses the control electronics as well as the arc power supply for the 1200 watt short arc lamp. The arc power supply is power factor corrected for efficient power distribution.
The VL3000 Spot luminaire can be controlled from a wide variety of DMX512 consoles.
The luminaire is the same size as the VL3000 Wash luminaire, providing a consistent hang configuration and appearance no matter which luminaire type is required.

Related Shows


Documents

Vari*Lite Advert from Live Design
Vari*Lite Advert from Live Design (August 2010)
Click on thumbnail to enlarge
[110kb  JPEG]
From Live Design

VL3000Q Spot Datasheet (2013)
[179kb PDF]
