Pepper’s Ghost and Holograms

Pepper’s Ghost is an optical trick used to make a ghost appear on stage next to an actor. A sheet of glass is hung across the front of the stage so that the image of an actor standing in the orchestra pit appears to float on stage. First shown at the Royal Polytechnic Institution in London by ‘Professor’ John Henry Pepper on Christmas Eve, 1862. Following many subsequent events, Charles Dickens used it during readings of The Haunted Man. Several plays were written specially to use the effect around 1863, but the long-term future of the effect was limited by the fact that the ghost couldn’t speak.
Pepper’s Ghost is used to great effect in applications like the Haunted Mansion in Disney theme parks, and Enchanted Tale of Beauty and the Beast at Tokyo Disneyland.

A modern equivalent is the ‘holographic’ illusion created using the Eyeliner system by Musion (below).
A semi-reflective foil is used instead of a sheet of glass, but it must be carefully positioned, and tightly stretched, and the audience must be within a relatively narrow field of view (or they see the edges of the screen). With careful matching of the lighting on stage and the lighting on the projected image, a convincing iilusion of an on-stage hologram is produced.

2005: MTV Awards
A ‘live’ performance by the animated cartoon band Gorillaz appearing as holograms

2006: Grammy Awards
Gorillaz and Madonna (both in-person, and holographically) brought the technique to a huge worldwide audience

Tupac performance at Coachella 2012

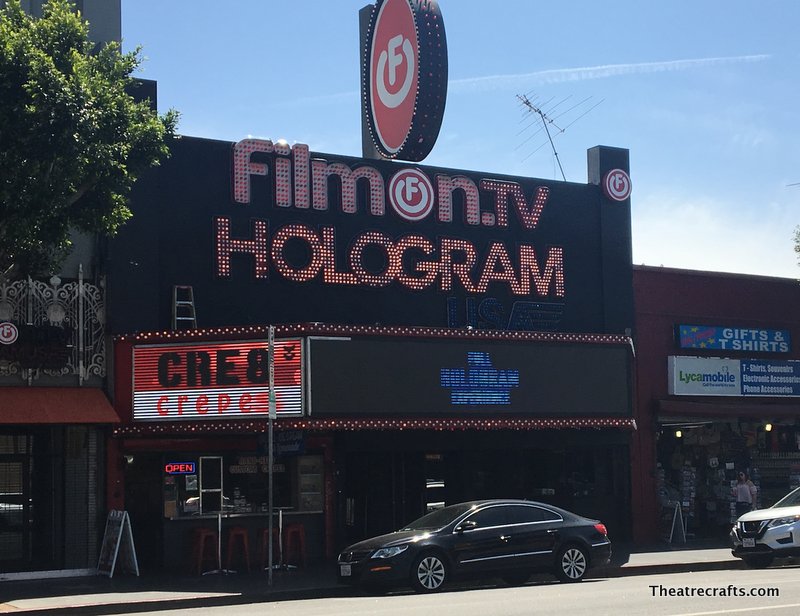

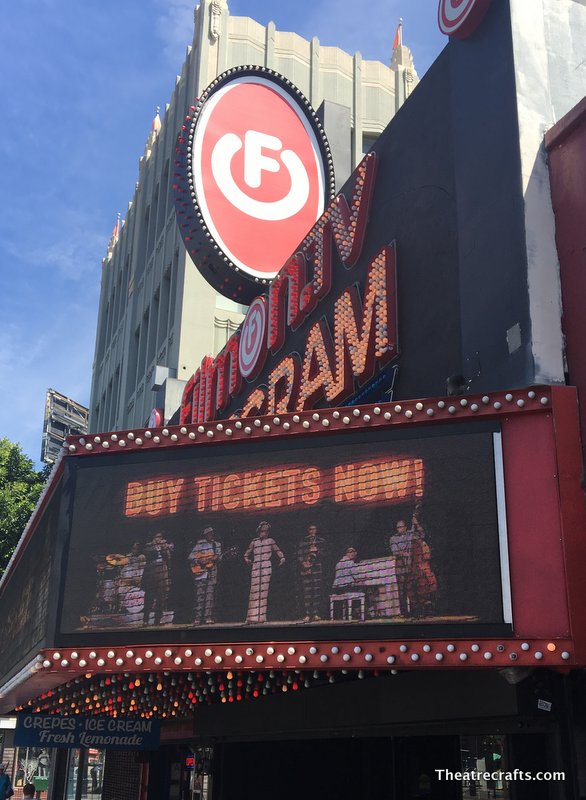

In Los Angeles, a Hologram ‘live’ music venue has opened up. This uses the Musion technique below.

The Musion technique is also used in some theme park attractions. It was first used in ‘Disaster‘ at Universal Studios Florida, and subsequently in The Fast and the Furious: Supercharged as part of the Studio Tour at Universal Studios Hollywood. In this attraction, the effect works particularly well as the projected ‘holograms’ are synchronised with practical effects such as a full-size truck which rises into view on a lift, with the hologram of actor Vin Diesel riding on it.

Some live theatre shows claim to use holograms (e.g. Time and War of the Worlds Live) – this is usually a standard projection onto a featureless pale-coloured ‘head’, which appears to be a three-dimensional projection when lined-up and lit correctly.

The latest tour of War of the Worlds: The New Generation uses the Musion technique to bring a ‘hologram’ of Liam Neeson to the stage alongside live actors.

As well as the Musion solution, a simpler way is to use a reflective gauze such as the aptly named Pepperscrim by Showtex. This is designed to be highly transparent and also very reflective of either front or rear projection.

Abba Voyage

Despite appearances, there is no ‘holographic’ trickery in Abba Voyage – it’s an incredibly well-designed LED video wall, and the illusion of depth is created by a huge lighting rig in the real environment which also continues into the virtual world beyond the screen.

Documents


Eurovisions Holographic Heats (May 2017)
[External Website]
From Lighting & Sound International

Musion Eyeliner

Pepperscrim

Keywords; Peppers Ghost effect, Pepper’s Ghost effect, Apparation, Ghost on Stage, Hologram on stage
