Lighting Stencil: Theatre Projects  (1963)

In his excellent e-book 'A Theatre Project', Richard Pilbrow writes that the stencils were created in 1963, as previously designers had simply traced the symbols from existing paperwork or used more generic shapes from existing engineering stencils. The symbols were drawn up by Bob Bryan (of Theatre Projects) and were made by UK manufacturer UNO (at 1:24 and 1:48 scales). They were sold in the UK and USA and were a great success.
The ones shown below were made sometime after 1978 and are metric scales (1:25 and 1:50).


  Documents & Photos

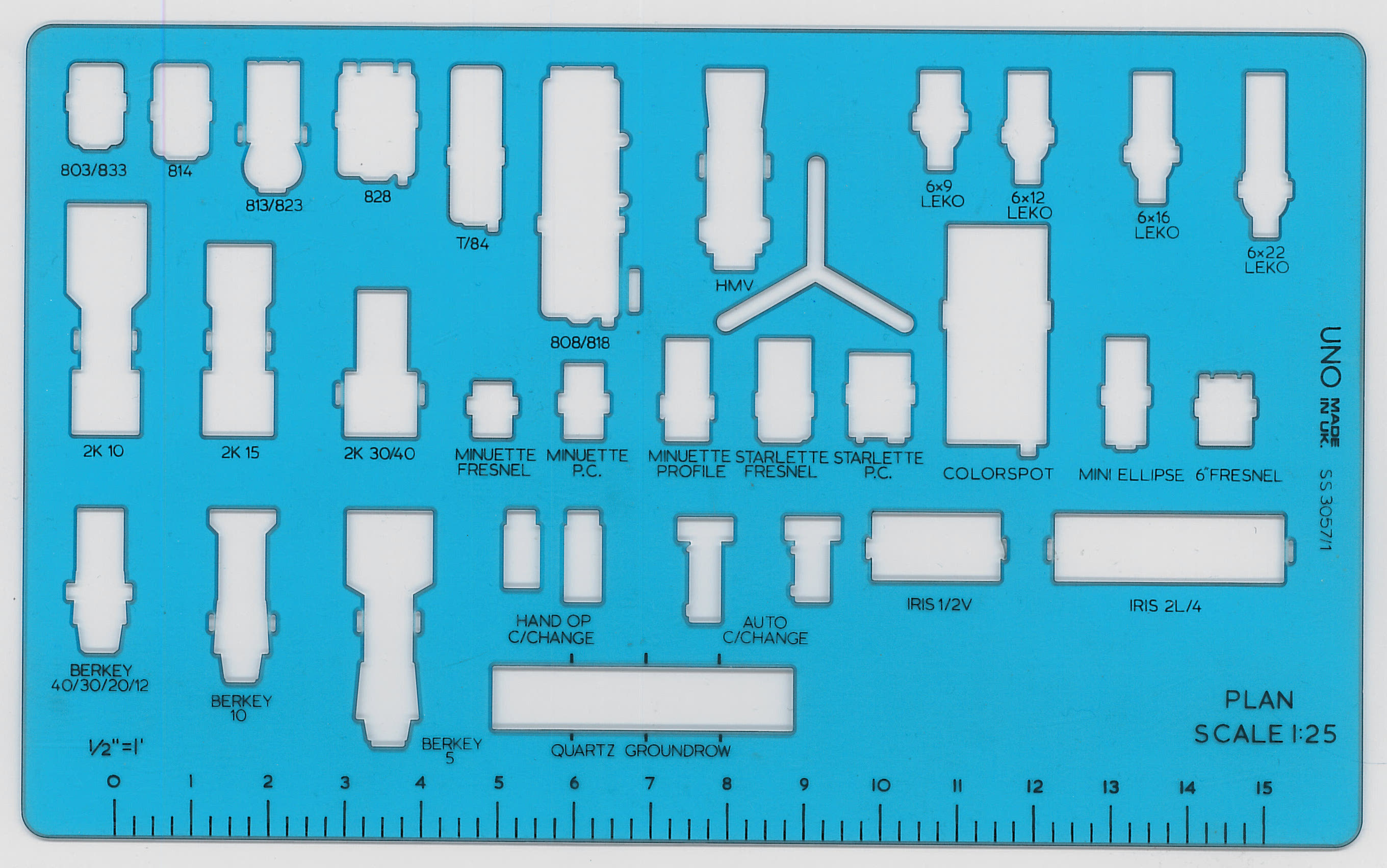

Lighting Stencil: Theatre Projects 1:25 Plan
Lighting Stencil: Theatre Projects 1:25 Plan
From Strand Archive

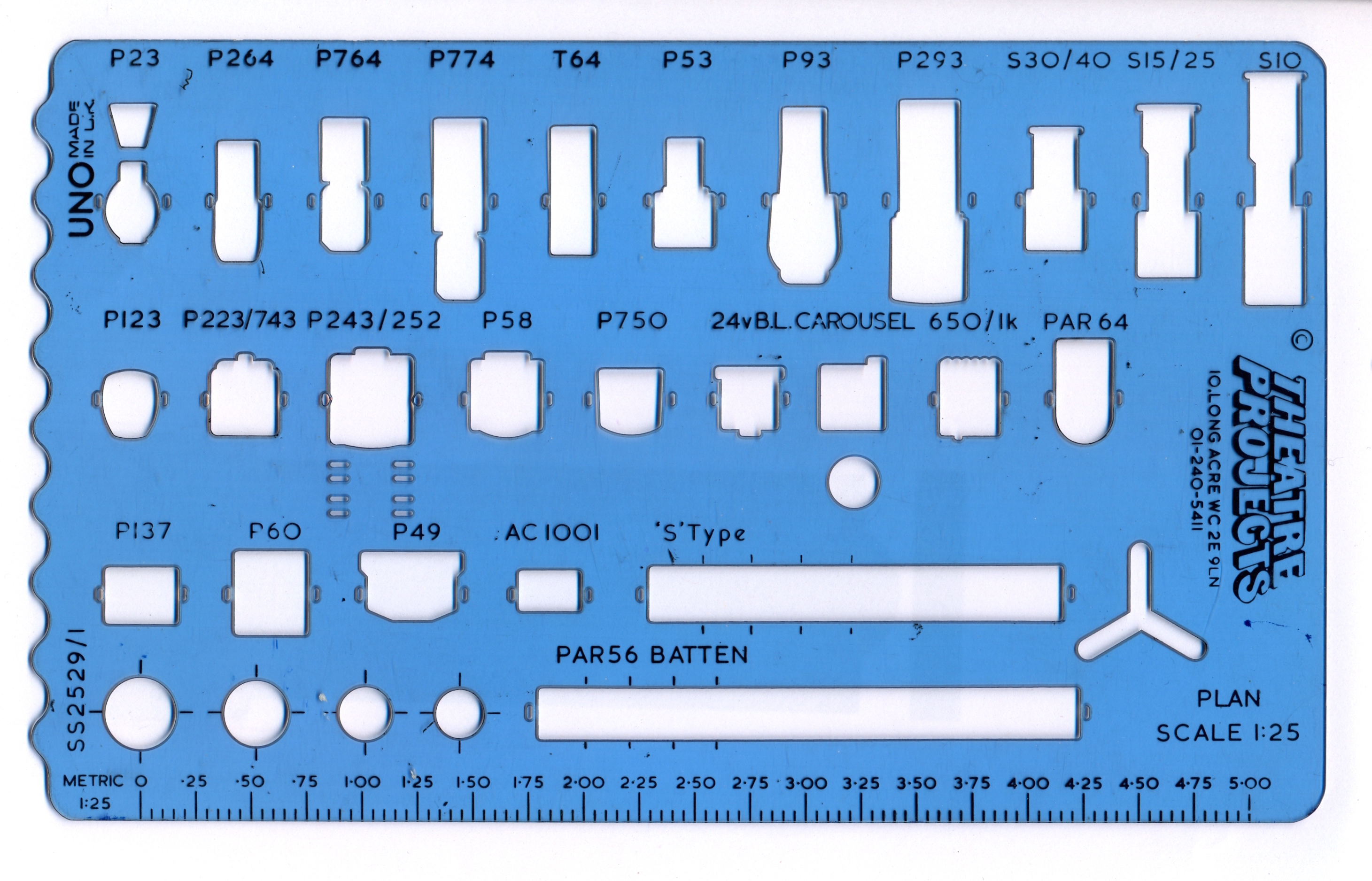

Lighting Stencil: Theatre Projects 1:25 Plan
Lighting Stencil: Theatre Projects 1:25 Plan
From Strand Archive
Lighting Stencil: Theatre Projects 1:25 Section
Lighting Stencil: Theatre Projects 1:25 Section
From Strand Archive

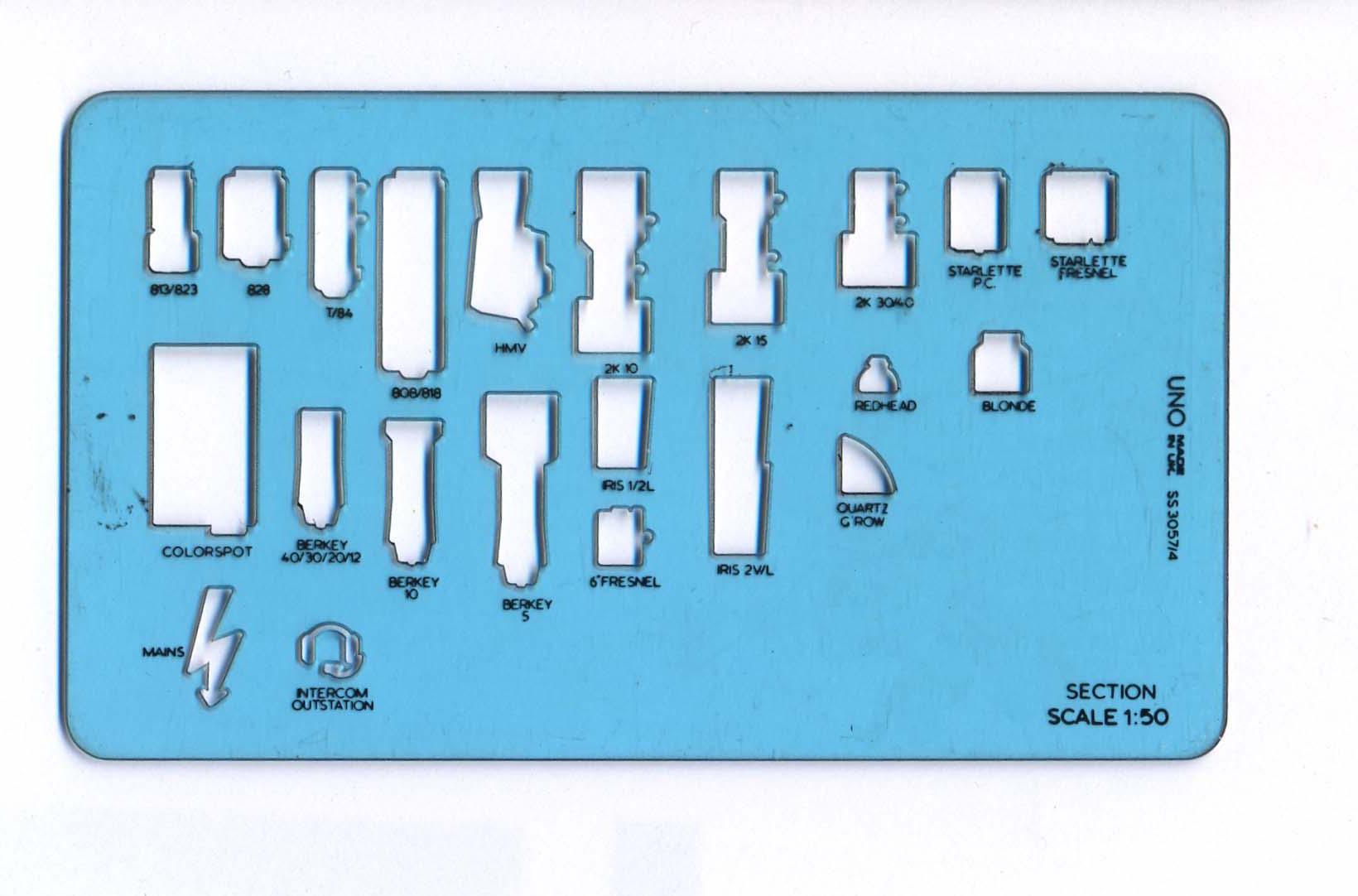

Lighting Stencil: Theatre Projects 1:50
Lighting Stencil: Theatre Projects 1:50
From Strand Archive



  From Strand Archive
